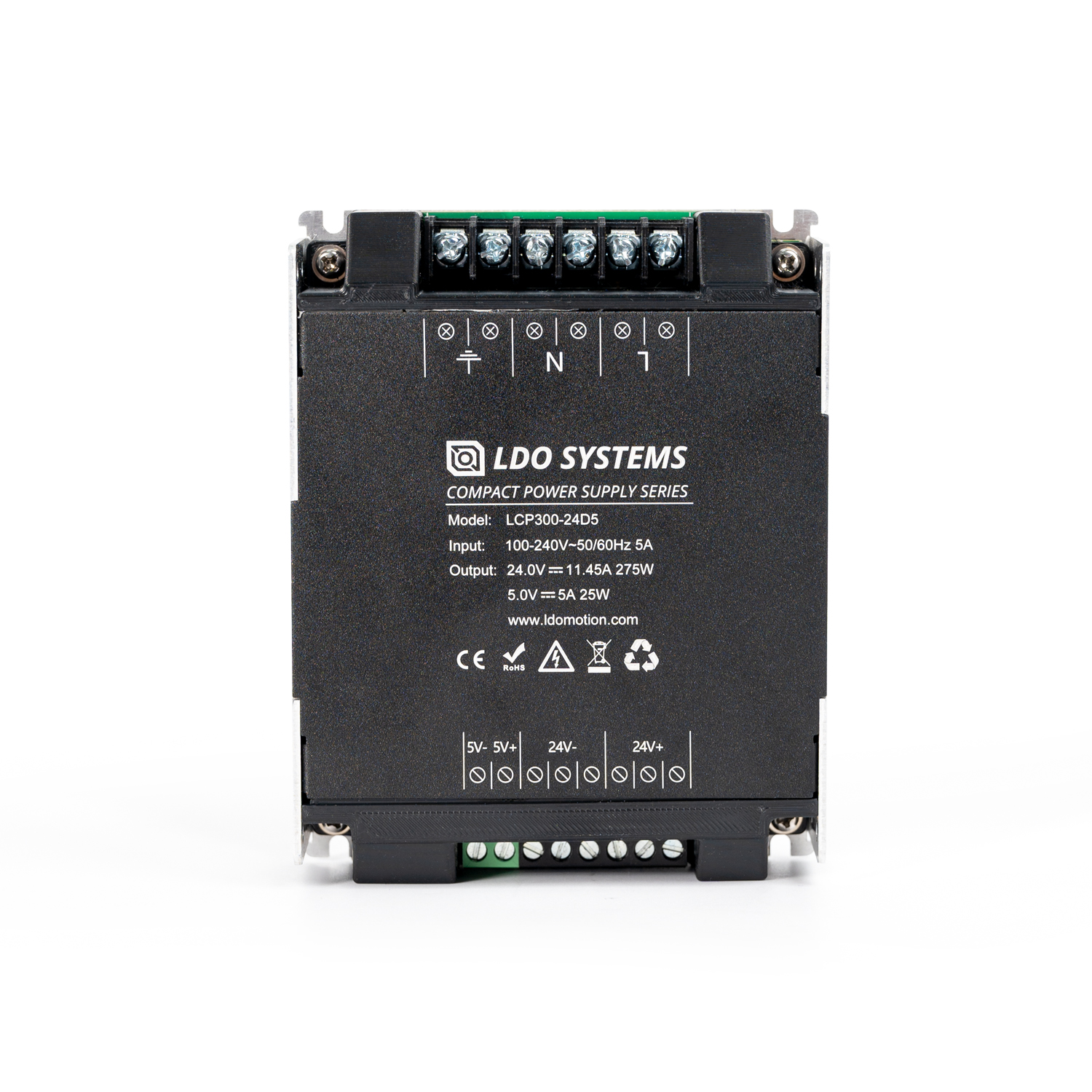

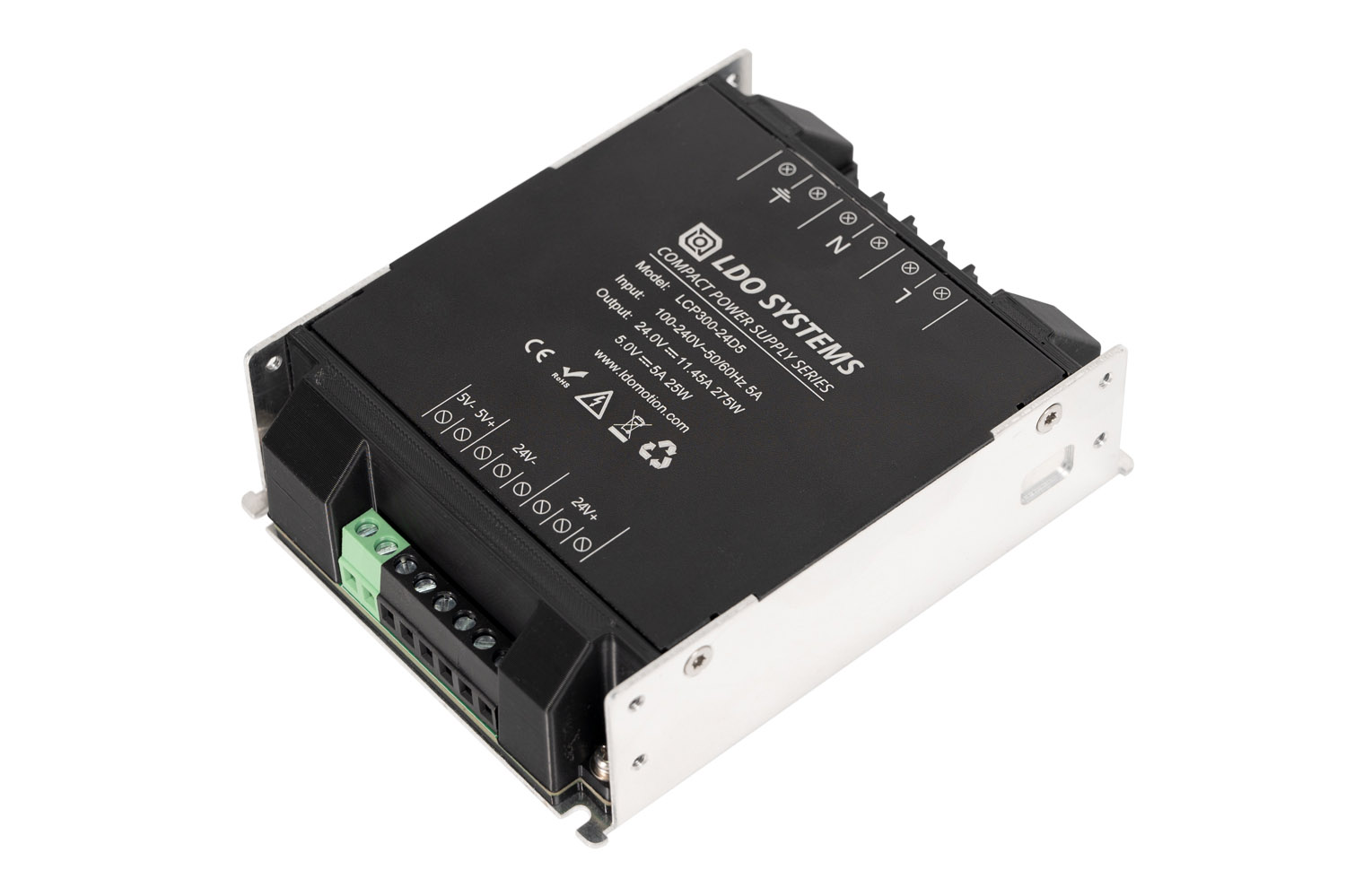

¶ Description
The LCP300-24D5 is a compact, fully enclosed 300W dual-output power supply for 3D printing applications. Featuring power factor correction and gallium nitride technology, the LCP300-24D5 provides 24V and 5V outputs with an efficiency of over 90%.
¶ Features
- Dual output voltage: 24VDC (x3) and 5VDC (x1)
- Highly compact (120×95×35mm) and fully enclosed
- GaN technology with PFC and efficiency of up to 91%
- Overload, overvoltage, and temperature protection
- Wide AC input range: 100-240VAC
- Dual AC input terminals, supporting AC series connection

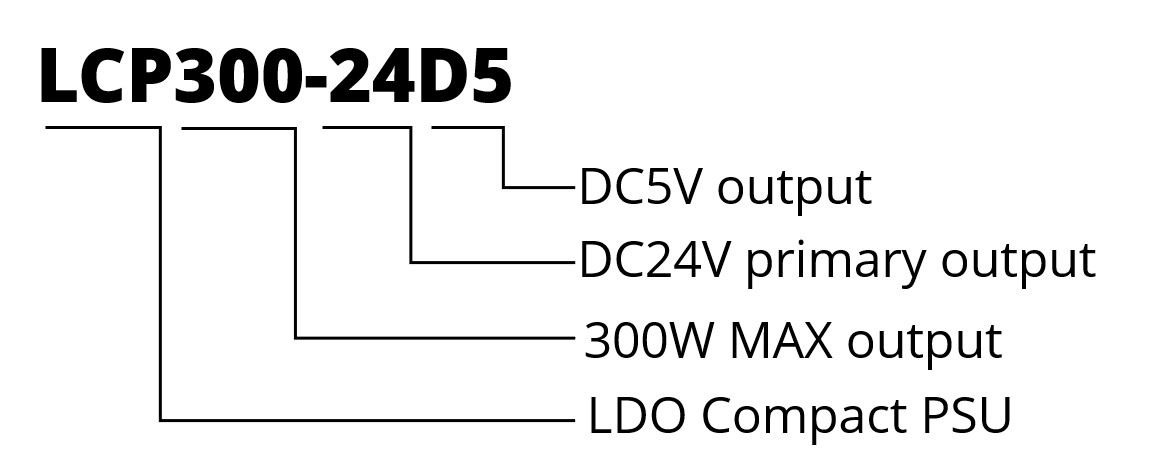

¶ Model Breakdown
¶ Electrical Specifications
| Model | LCP300-24D5 | ||
| Output | Output Voltage | 5V | 24V |
| Max Current | 5A | 11.45A | |
| Max Power | 25W | 275W | |
| Ripple & Noise (Max)2 | 150mVp-p | 360mVp-p | |
| Line Regulation | ±1% | ±1% | |
| Load Regulation | ±5% | ±2% | |
| Start-up / Rise Time3 | 3000ms/115VAC，≤100ms/220VAC | ||
| Hold-up Time4 | ≥8.3ms at full load | ||
| Input | Voltage Range | 100 - 240VAC | |
| Frequency Range | 50-60Hz | ||
| Efficiency | ≥91% | ||
| AC Current | 3.5A/115VAC 2A/230VAC | ||
| Inrush Current | ≤50A/220VAC cold start | ||
| Leakage Current | ≤0.75mA, 240VAC/50Hz | ||
| L/N Terminal Current5 | 12A Max | ||
| Protection Features | Overload Protection | ≥110% of rated output power | |
| 5.2-6A (5V), 13-17A (24V), output voltage shuts off; recovers automatically after fault removal | |||
| Overvoltage Protection | ≥135% of rated output voltage | ||
| Output voltage shuts off; recovers automatically after fault removal | |||
| Temperature Protection | When enclosure surface temperature exceeds 110°C | ||
| Output voltage stops until temperature drops below 80°C | |||
| Environmental Conditions | Operating Temperature | -20~40℃ | |
| Operating Humidity | 10~90% | ||
| Storage Temperature & Humidity | -30~85℃/ 5~90% | ||
| Vibration | 10-500Hz, 2G, 10 minutes/cycle, 60 minutes in each X, Y, and Z direction | ||
| Safety & Compliance | Safety Standards | ||
| High Voltage Resistance | 2.5KVAC | ||
| Insulation Resistance | ≥100MΩ | ||
| EMC Immunity | Compliant with EN/IEC: EN55032, EN55035 | ||
| Harmonic Standards | Compliant with IEC61000-3-2, IEC61000-3-3 | ||
| LVD | Compliant with EN IEC 62368-1 | ||
| Others | Dimensions | 120.0mm (L) * 95.0 mm (W) * 35.0 mm (H) | |
| Packaging | 132x105x39mm | ||
| MTBF | 50000h (25℃) | ||
| Notes |
|
||
¶ Wiring & Connections
¶ AC (Mains) Input
The LCP300-24D5 accepts a wide input range from 100-240VAC. No input voltage selection switch required.

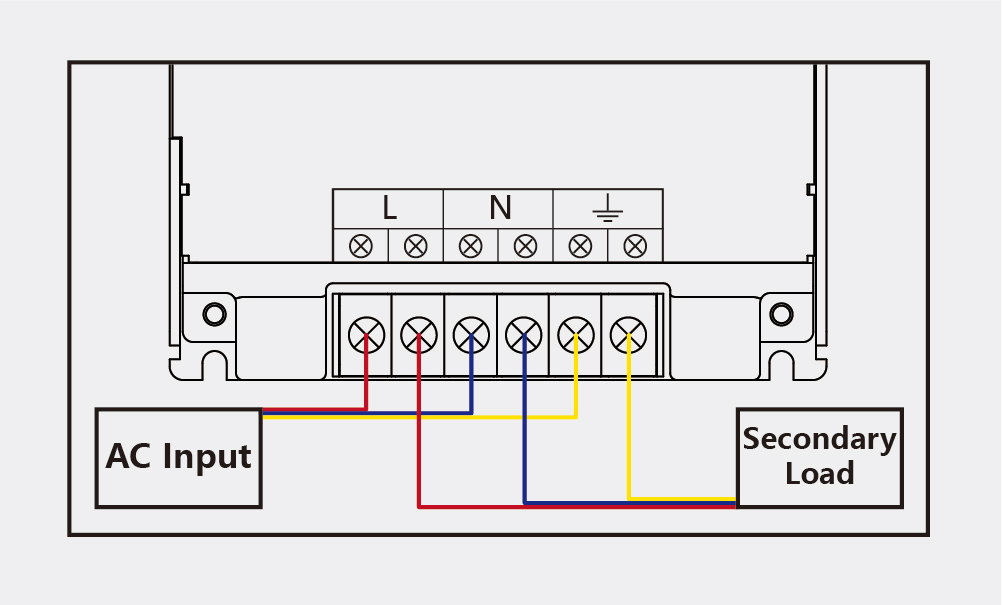

The LCP300-24D5 features dual AC input terminals. Each terminal is capable of carrying currents of up to 12A. This allows for additional AC loads to be daisy chained through the power supply, greatly simplifying wiring.
The input connectors use M3 barrier terminals. SV2-3 or equivalent fork spade terminals are recommended for wiring.
¶ Output Terminals

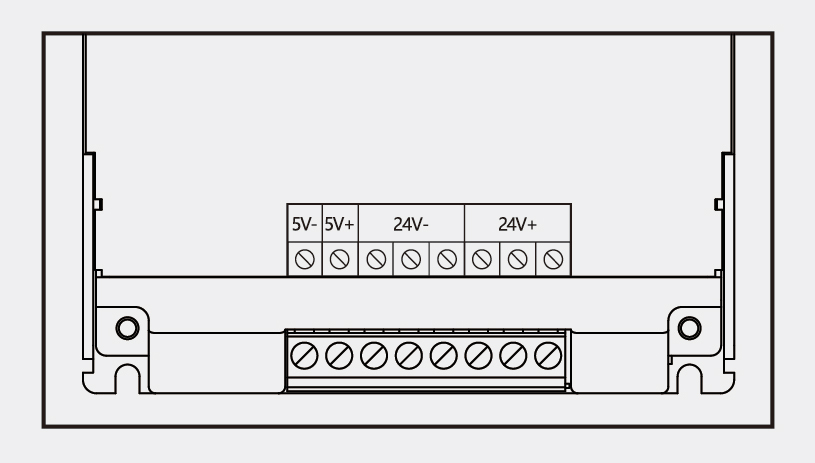

The LCP300-24D5 features three 24VDC output terminals and a single 5VDC output. The 5V output is generated using an internal step-down buck converter from the 24V rail.
A total combined output of 300W is possible. However, at maximum output, the power supply can become significantly hot, and external airflow directed at the casing is recommended in this situation.
The output connectors use standard screw terminals. While bare stripped wires can be used, it is highly recommended to use ferrules. Ferrules up to size VE1508 can be used.

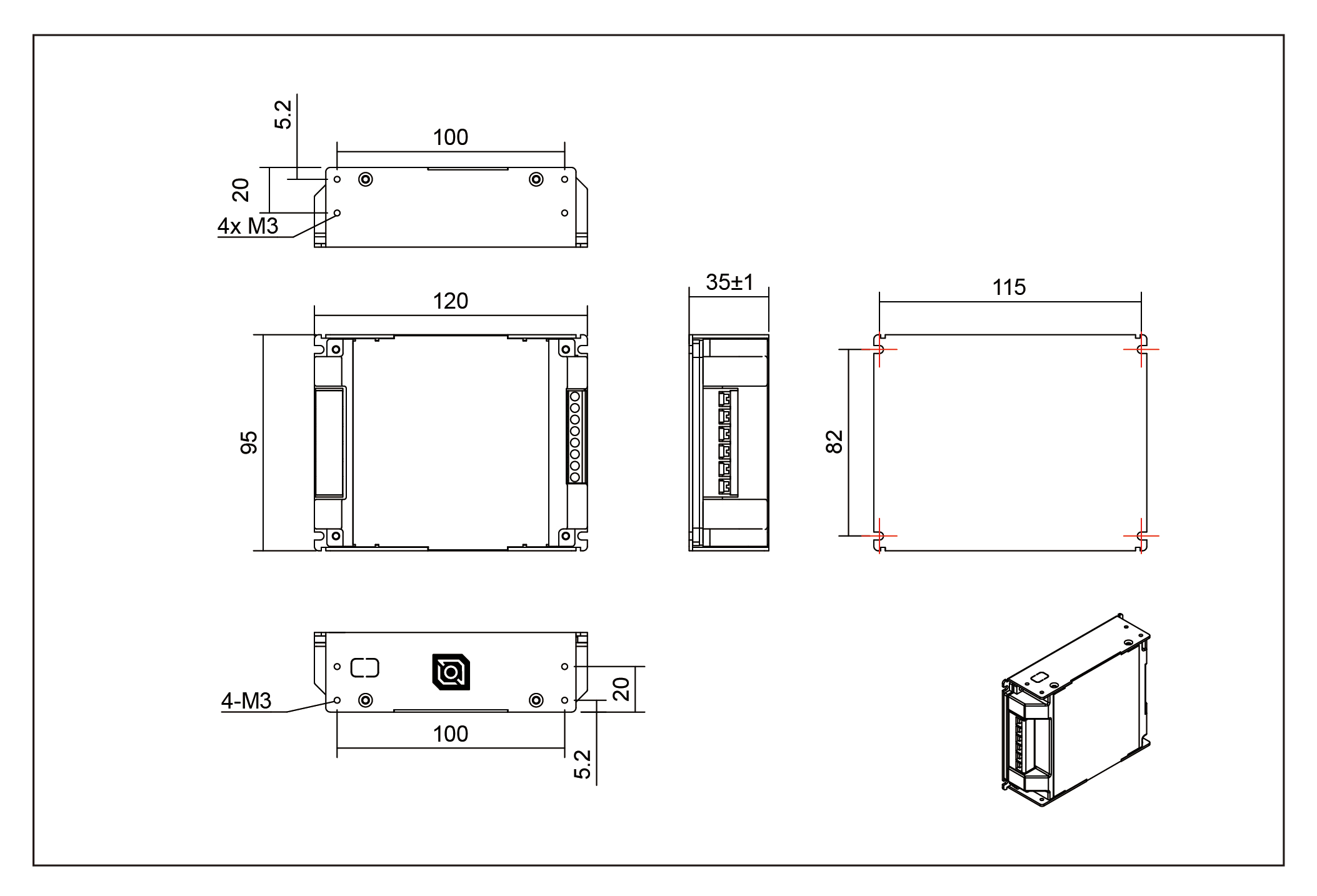

¶ Drawings and Dimensions
A 3D CAD model is provided here.
