¶ Description

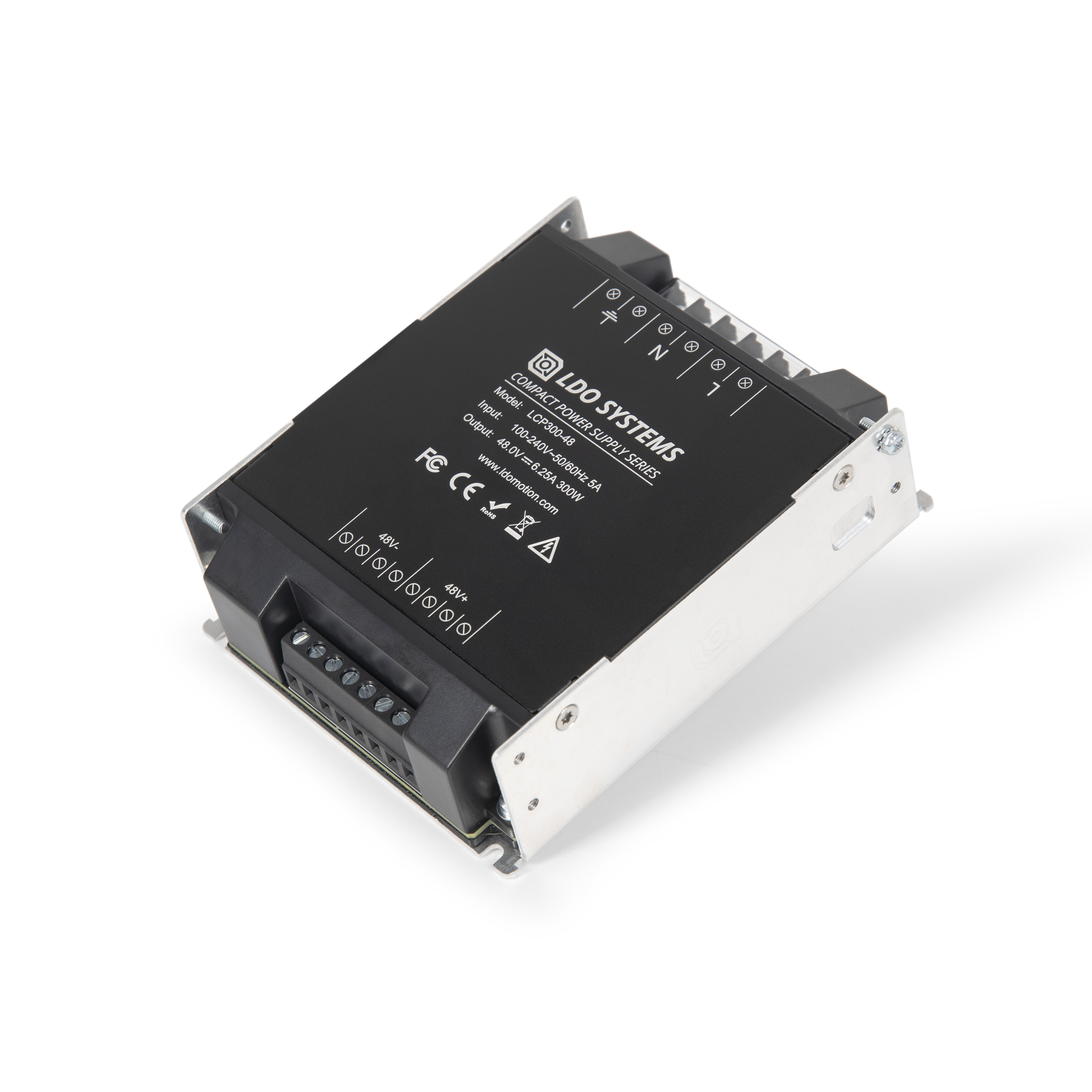

The LCP300-48 is a compact, fully enclosed 300W output power supply for 3D printing applications. Featuring power factory correction and Gallium Nitride technology, the LCP300-48 provides 48V outputs with an efficiency of over 90%.
¶ Features
- Output voltage: 48VDC (4pin+, 4pin-)
- Highly compact (120×95×35mm) and fully enclosed
- GaN technology with PFC and efficiency of up to 91%
- Overload, overvoltage, output short-circuit, and temperature protection
- Wide AC input range: 100-240VAC
- Dual AC input terminals, supporting AC parallel connection

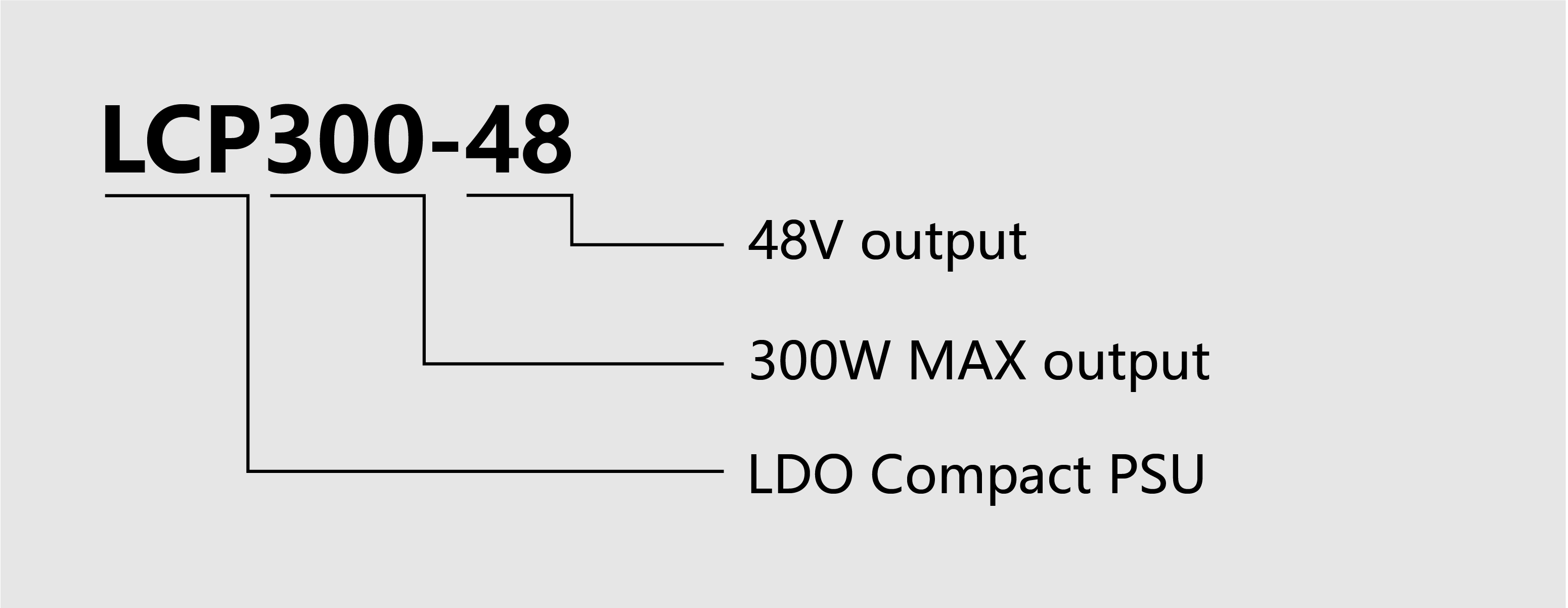

¶ Model Breakdown
¶ Electrical Specifications
| Model | LCP300-48 | ||
| Output | Output Voltage | 48V | |
| Max Current | 6.25A | ||
| Rated Power | 300W | ||
| Ripple & Noise (Max)2 | 360mVp-p | ||
| Line Regulation | ±1% | ||
| Load Regulation | ±2% | ||
| Start-up / Rise Time3 | 3000ms/115VAC，≤100ms/220VAC | ||
| Hold-up Time4 | ≥8.3ms | ||
| Input | Voltage Range | 100 - 240VAC | |
| Frequency Range | 50-60Hz | ||
| Efficiency | ≥91% | ||
| AC Current | 3.5A/115VAC 2A/230VAC | ||
| Inrush Current | ≤80A/220VAC cold start | ||
| Leakage Current | ≤0.75mA, 240VAC/50Hz | ||
| L/N Terminal Current5 | 12A Max | ||
| Protection Features | Overload Protection | ≥110% of rated output power | |
| 7.2-11.25A (48V), output voltage shuts off; recovers automatically after fault removal | |||
| Output Short-circuit Protection | output voltage should shuts off without causing damage to the power supply; recovers automatically after fault removal | ||
| Overvoltage Protection | ≥135% of rated output voltage | ||
| Output voltage shuts off; recovers automatically after fault removal | |||
| Temperature Protection | When enclosure surface temperature exceeds 110°C | ||
| Output voltage stops until temperature drops below 80°C | |||
| Environmental Conditions | Operating Temperature | -20~50℃ | |
| Operating Humidity | 20~90%RH | ||
| Storage Temperature & Humidity | -30~85℃/ 10~95%RH | ||
| Vibration | 10-500Hz, 2G, 10 minutes/cycle, 60 minutes in each X, Y, and Z direction | ||
| Safety & Compliance | Safety Standards | ||
| High Voltage Resistance | 2.5KVAC | ||
| Insulation Resistance | ≥100MΩ | ||
| EMC Immunity | Compliant with EN/IEC: EN55032, EN55035 | ||
| Harmonic Standards | Compliant with IEC61000-3-2, IEC61000-3-3 | ||
| LVD | Compliant with EN IEC 62368-1 | ||
| FCC |
Compliant with FCC 47 CFR Part 15 Subpart B ANSI C63.4:2014 |
||
| WEEE | Compliant with Directive 2012/19/EU | ||
| Others | Dimensions | 120.0mm (L) * 95.0 mm (W) * 35.0 mm (H) | |
| Packaging | 137x105x39mm | ||
| MTBF | 50000h (25℃) | ||
| Notes |
|
||
¶ Wiring & Connections
¶ AC (Mains) Input
The LCP300-48 accepts a wide input range from 100-240VAC. There is no input voltage selection switch required.
The LCP300-48 features dual AC input terminals. Each terminal is capable of transferring currents of up to 12A. This allows for additional AC loads to be daisy chained through the power supply, greatly simplifying wiring.
The input connectors use M3 barrier terminals. SV2-3 or equivalent fork spade terminals are recommended for wiring.

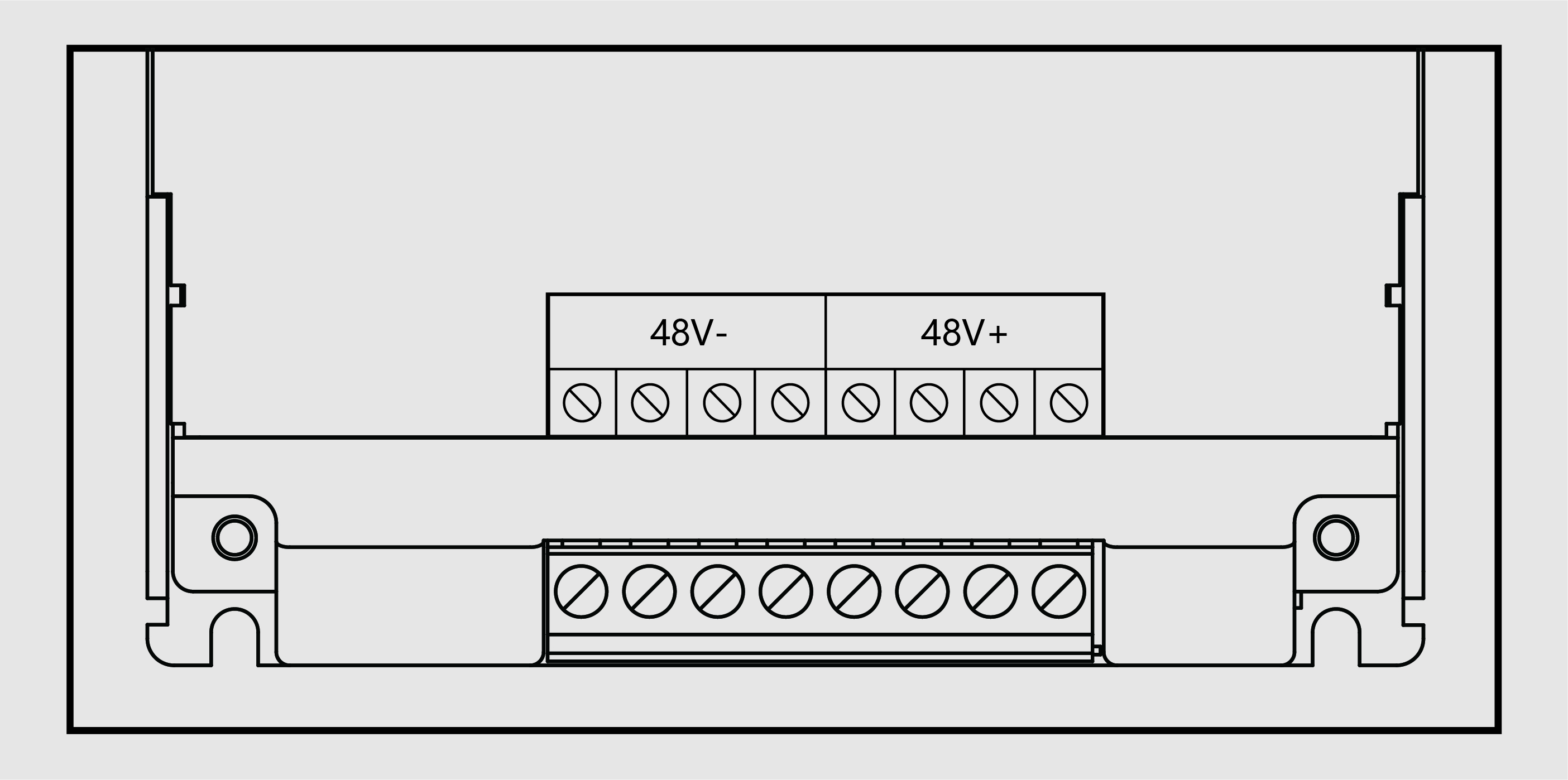

¶ Output Terminals
The LCP300-48 features four 48VDC output terminals.
A total combined output of 310W is possible. However, at maximum output, the power supply can become significantly hot, and external airflow directed at the casing is recommended in this situation.
The output connectors use standard screw terminals. While bare stripped wires can be used, it is highly recommended to use ferrules. Ferrules up to size VE1508 can be used.
¶ Drawings and Dimensions
A 3D CAD model is provided here.
