Users in the initial batch of Monolith CNC Gantry kits will receive parts with the bearing shims pre-installed. If the parts shown in the image do not have the shims installed, or if replacement is needed later, follow the instructions below.

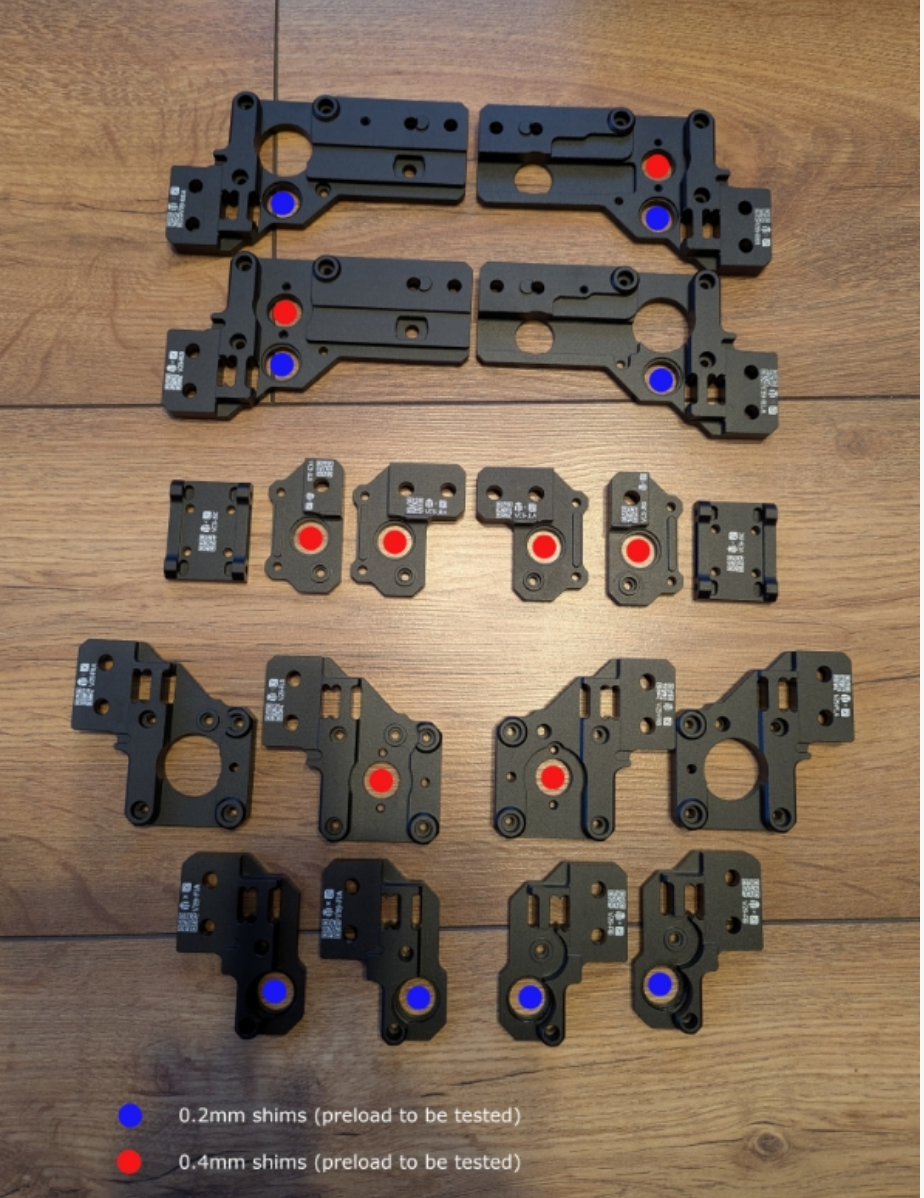

No special technique is required—place one 0.2 mm bearing shim in each area marked with a blue dot, and one 0.4 mm bearing shim in each area marked with a red dot.
